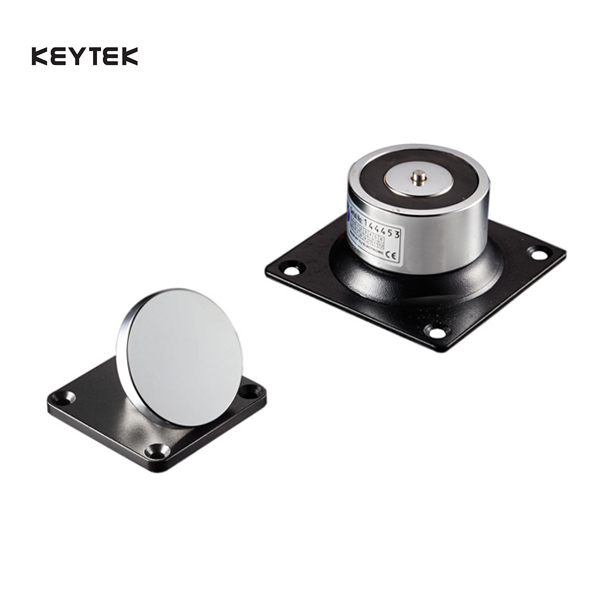

KEYTEK Wall and Floor Mounts for Electromagnetic Lock KD601
KEYTEK Wall and Floor Mounts Accessories for Electromagnetic Lock KD601
BARCODE: 6009695289879
- Holding Force 50kg (110Lbs)
- Voltage:
DC24V+10%12VDC - Current Draw:
12V/180mA
24V/70mA - Manual door release button
Description
KEYTEK Wall and Floor Mounts Accessories for Electromagnetic Locks
Information
| BRAND | KEYTEK |
|---|---|
| PRODUCT TYPE | Electromagnetic Locks |
| BODY MATERIAL | Brass, Iron, Stainless Steel |
Technical Info
| Product Parameter | Parameter Description |
| Dimensions | L80xW80xH40(mm) |
| Holding Force | 50kg(110Lbs) |
| Voltage | 12/24 VDC+/- 10% (Adjustable) |
| Current Draw | 12V/140mA 24V/70mA |
| Suitable for | All Kind of Single & Double Smokeproof Doors |
| Surface Temp | ≤+20℃ |
| Operating Temp | -10～+55℃(14-131F) |
| Suitable Humidity | 0~90%(relative humidity) |
| Finishes for Shell | High Temperature Paint and Environmental Protection Zinc |
| Finishes for Armature | Zinc |
| Weight | 0.85kg |
