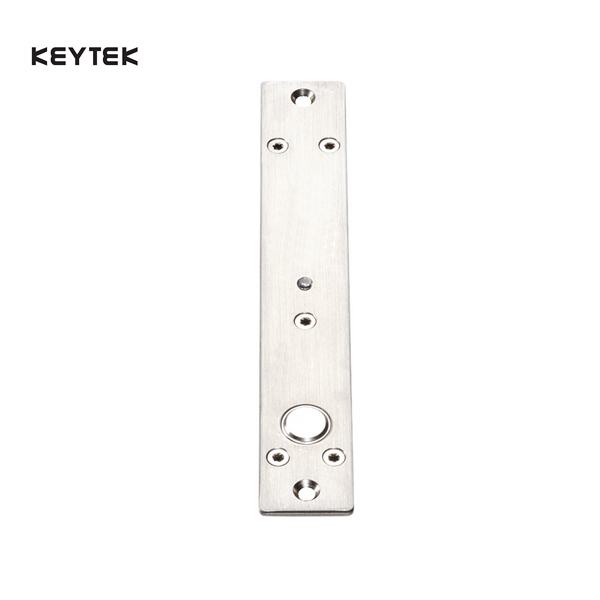

KEYTEK Electromagnetic Bolts for Electromagnetic Lock KB700A
KEYTEK Electromagnetic Bolts for Electromagnetic Lock KB700A
BARCODE: N/A
- Heavy wooden and metal doors
- Available in fail safe and fail secure
- Light on indicates locked, light off indicates unlocked
- Includes adjustable pick-up sensor
Description
KEYTEK Electromagnetic Bolts for Electromagnetic Lock KB700A
BARCODE: N/A
- Heavy wooden and metal doors
- Available in fail safe and fail secure
- Light on indicates locked, light off indicates unlocked
- Includes adjustable pick-up sensor
- Face plate size:
205mm (L) X 30mm (W) X 38mm (H) - Holding force: 2000 kgs
- Voltage: 12V DC
- Current:
Start: 900mA
Standby: 150mA
Fail safe:
Locking devices are unlocked when power is lost
Fail secure: Locking devices remain
locked when power is lost
KEYTEK Electromagnetic Bolts for Electromagnetic Locks
Information
| Brand | KEYTEK |
|---|---|
| Product Type | Electromagnetic Locks |
| Body Material | Brass, Iron, Stainless Steel |
Technical Info
| Product Parameter | Parameter Description |
| Feature | Fail Safe |
| Face Plate | 225Lx34WX38H(mm) |
| Strike | 100Lx25Wx3W(mm) |
| Bolt | 16(length)*16(diameter)(mm) |
| Voltage | DC12V+10% |
| Start Current | 1200mA |
| Standby Current | 200mA |
| Solid Bolt | Polishing housing, 2000Kg Holding Force |
| Suitable For |
Heavy door; Wooden door; Metal door
|
| LED | Light on indicates locked, light off indicates unlocked |
| Autolock Time Delay | 0,3,6,9sec |
| Signal Output | Lock signal:NO/NC/COM Door signal:NO/COM |
| LED | Light on indicates locked, light off indicates unlocked |
| Surface Temp | Low Temperature |
| Detection Distance | Within 8mm |
| Special Designed | Tested to 500000 cycles |
| Material | 304 stainless steel, wire draw finishing |
| Weight | 1.0kg |
