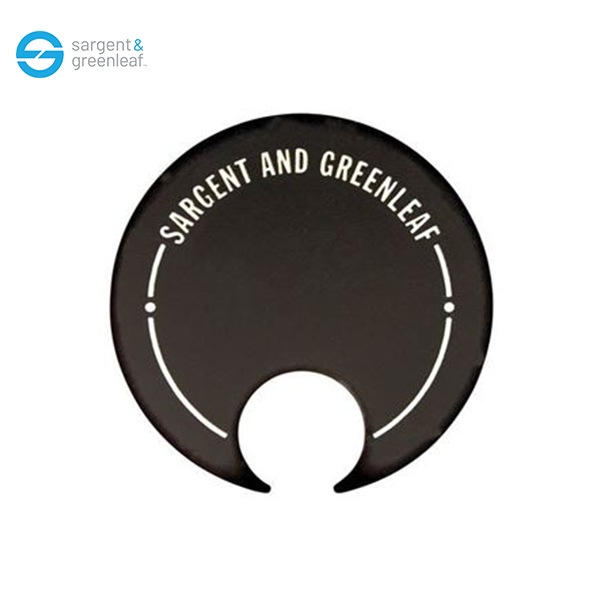

S&G Dial Locking Cover Insert With Cylinder Cut Out 7600-003

S&G Dial Locking Cover Insert With Cylinder Cut Out 7600-003

S&G Dial Locking Cover Insert With Cylinder Cut Out 7600-003
BARCODE: N/A

The Professional’s First Choice for Solid Reliability

AS&G® Model 6730 Mechanical Safe Lock.
Sargent and Greenleaf safe locks have been protecting the assets of banks, businesses and governments for more than a century and a half. The S&G ® 6 730 lock represents the ultimate evolution of the commercial grade mechanical safe lock. Ask professional safe technicians, and you’ll soon learn that the overwhelming lock of choice is the S&G® 6730.

The 7600-003 Dial Locking Cover Insert With Cylinder Cut Out

Time-tested mechanical security
The S&G® 6730 lock is based on the best of historical models, combining proven design with modern manufacturing processes to meet today’s security demands.Easy to install
The S&G® 6730 lock uses S&G’s “Magic Module” footprint to conform to the default industry standard for case size and mounting screw location that it defined decades ago. This translates into easy retrofits by eliminating the need for mounting plate or boltwork modifications.

The best selection of dials and rings
From tuxedo black and white painted dials and rings to chrome, brass, 14k and 24k gold plate, the 6730 can match the presence and finish of any safe, from workhorse commercial container to beautifully finished weapons safe. Key locking, nonkey locking, front reading, Spy-Proof—the choices are diverse and numerous.

Familiar Operation
The left—right—left dialing sequence has become the industry standard over decades of use by security-minded safe owners.

Rugged Construction
The S&G 6730 meets a long list of American and international testing agency criteria, including:

UL® Group 2
VdS Class 1
EN 1300 A
CNPP A2P A/E
China CCC
…and it’s RoHS compliant

The support of the industry leader
S&G is one of the world’s largest manufacturers of high-security safe and vault locks, with a broad array of locks, based on mechanical and advanced electronic platforms. Our mechanical safe locks are recognized as industry standards, unsurpassed in quality. We provide excellence in all areas – from our ISO 9001, U.L®,. and other worldwide certifications to our experienced customer service and technical support staff. We proudly stand behind all of our products with one of the best warranties in the industry.

Description
Information

Description

S&G Dial Locking Cover Insert With Cylinder Cut Out 7600-003
BARCODE: N/A

The Professional’s First Choice for Solid Reliability

The 7600-003 Dial Locking Cover Insert With Cylinder Cut Out

Operation:

Three combination wheels for 1,000,000 possible combinations.
Standard bolt (8.9mm bolt throw).
Patented torque adjuster.
Integral relock trigger secures the lock in the event of a punch attack.
Brass, 4-way drive cam allows for RH, LH, VU and VD.
Brass and aluminium key change wheels incorporate dual locking arms.
Supplied with mounting screws and 1 x change key.

Features:

Three all-metal combination wheels.
Brass, dual lever locking arms mated to a machined brass wheel center for the ultimate non-slip wheel construction.
Key changeable wheel design for simple combination changing.
Exclusive, patented torque adjuster to easily keep the wheel pack assembly set to the perfect resistance for long life and maximum resistance to wheel skating and vibration opening.
Familiar left-right-left dialing sequence, and one-handed operation.
Built in relock trigger to protect against dial and spindle punching attacks.
Solid brass lock bolt is strong enough to resist 225 lbs. of force.
The lock case uses S&G’s “Magic Module” footprint for ease of retrofit on existing containers.
Available with a wide variety of dials and rings in painted and plated finishes (including 24k gold).
Certifications and Approvals:
UL® Group 2, VdS Class 1, EN 1300 A, CNPP A2P A/E, China CCC, and it ’s RoHS compliant.
