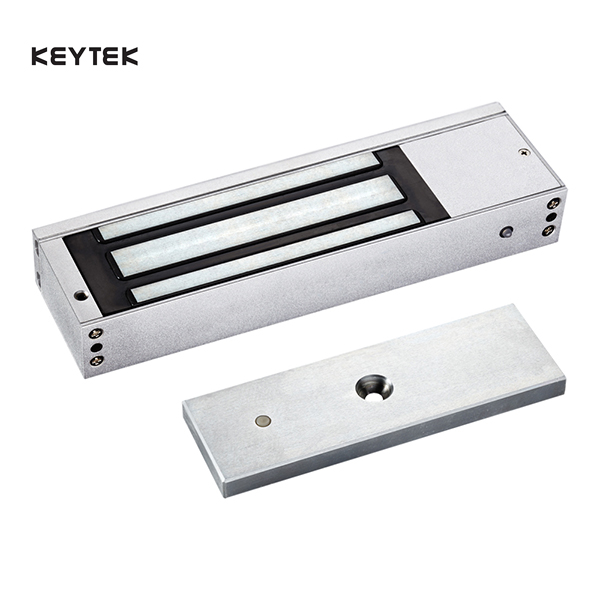

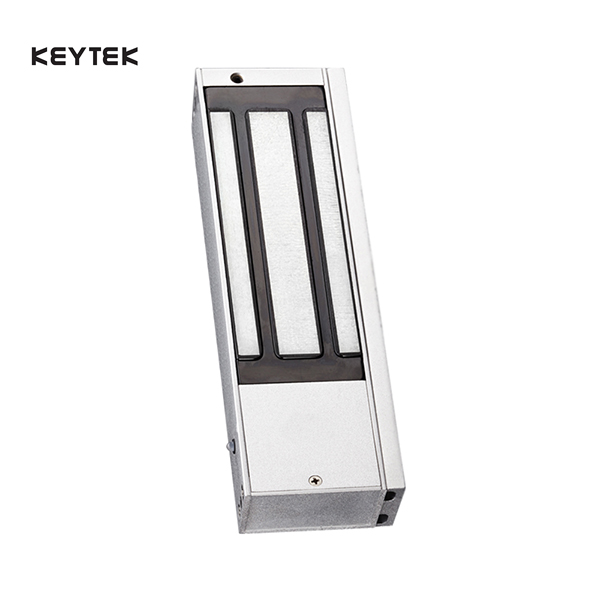

KEYTEK 500KG Mag Lock Electromagnetic Lock KM500TLED
KEYTEK 500KG Mag Lock Electromagnetic Lock KM500TLED
- Suitable for wooden, glass, metal and fire proof doors
- LED indicates door status
- Armature plate size:
185 (L) X 60 (W) X 13 (H) - Holding force:
500kgs - Voltage:
12 / 24 V DC ± 10% - Current draw:
12V/420mA
24V/210mA - Bracket:
ABK-500ZL
Description
KEYTEK 500KG Mag Lock Electromagnetic Lock KM500TLED
- Suitable for wooden, glass, metal and fire proof doors
- LED indicates door status
- Armature plate size:
185 (L) X 60 (W) X 13 (H) - Holding force:
500kgs - Voltage:
12 / 24 V DC ± 10% - Current draw:
12V/420mA
24V/210mA - Bracket:
ABK-500ZL
KEYTEK 500KG Mag Lock Electromagnetic Locks
Information
| Brand | KEYTEK |
|---|---|
| Product Type | Electromagnetic Locks |
| Body Material | Anodized Aluminum, Zinc |
Technical Info
| Product Parameter | Parameter Description |
| Size | 265Lx74.8Wx38.8H(mm) |
| Armature plate | 185Lx60Wx13H(mm) |
| Holding Force | 500kg(1200Lbs) |
| Voltage | 12 or 24VDC |
| Current Draw | 12V/420mA or 24V/210mA |
| Signal Output | Dry Contact, Max Rating of Contact Current 3A |
| Time | 0/3/6/9sec. |
| LED | Red indicates the door is unlocked,Green indicates the door is locked |
| Suitable for | Wooden door, Glass door, Metal door, Fireproof door |
| Surface Temp | ≤+20℃ |
| Operating Temp | -10～+55℃(14-131F) |
| Suitable Humidity | 0~95%(non-condensing) |
| Finishes for Shell | Anodized aluminum |
| Finishes for Magnetic | Zinc |
| Finishes for Armature | Zinc |
| Weight | 4.5kg |
