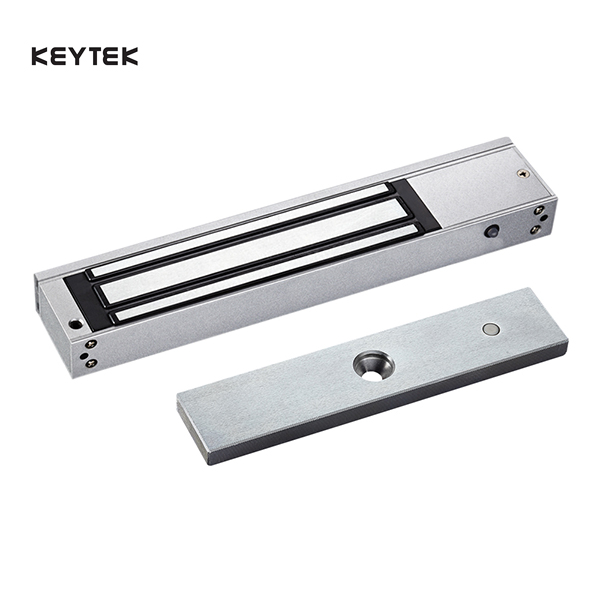

KEYTEK 280KG Mag Lock Electromagnetic Lock KM280TLED
KEYTEK 280KG Mag Lock Electromagnetic Lock KM280TLED
- Suitable for wooden, glass, metal and fire proof doors
- LED indicates door status
- Armature plate size:
180 (L) X 38 (W) X 11 (H) - Holding force: 280kgs
- Voltage: 12 / 24 V DC ± 10%
- Current draw:
12V/500mA
24V/250mA
Description
KEYTEK 280KG Mag Lock Electromagnetic Lock KM280TLED
- Suitable for wooden, glass, metal and fire proof doors
- LED indicates door status
- Armature plate size:
180 (L) X 38 (W) X 11 (H) - Holding force: 280kgs
- Voltage: 12 / 24 V DC ± 10%
- Current draw:
12V/500mA
24V/250mA - Brackets available:
ABK-280L
ABK-280UL
ABK-280ZL
KEYTEK 280KG Mag Lock Electromagnetic Locks
Information
| Brand | KEYTEK |
|---|---|
| Product Type | Electromagnetic Locks |
| Body Material | Anodized Aluminum, Zinc |
Technical Info
| Product Parameter | Parameter Description |
| Size | 250Lx48.5Wx25H(mm) |
| Armature Plate Dimension | 180Lx38Wx11H(mm) |
| Holding Force | 280kg(600Lbs) |
| Input Voltage | 12 or 24VDC |
| Current | 12V/500mA or 24V/250mA |
| Suitable | Wooden door, Glass door, Metal door, Fireproof door |
| Surface Temp | ≤+20℃ |
| Operating Temp | -10~+55℃(14-131F) |
| Humidity | 0~90%(non-condensing) |
| Cover Finish | Anodized aluminum |
| Lock Finish | Zinc |
| Armature Plate Finish | Zinc |
| Weight | 2.1KG |
