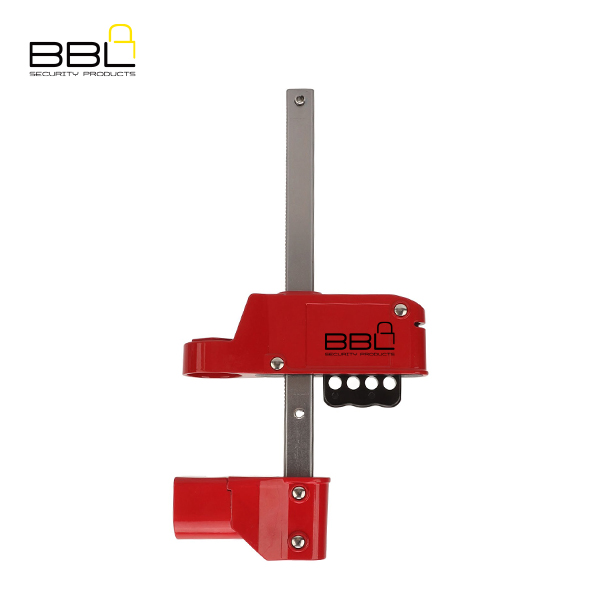

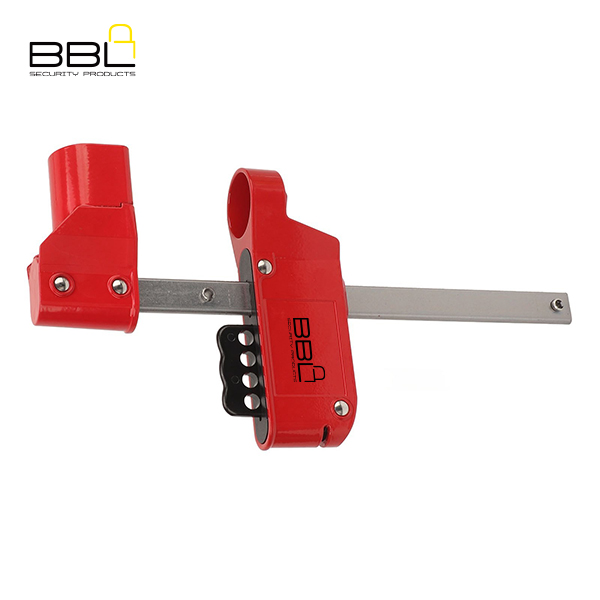

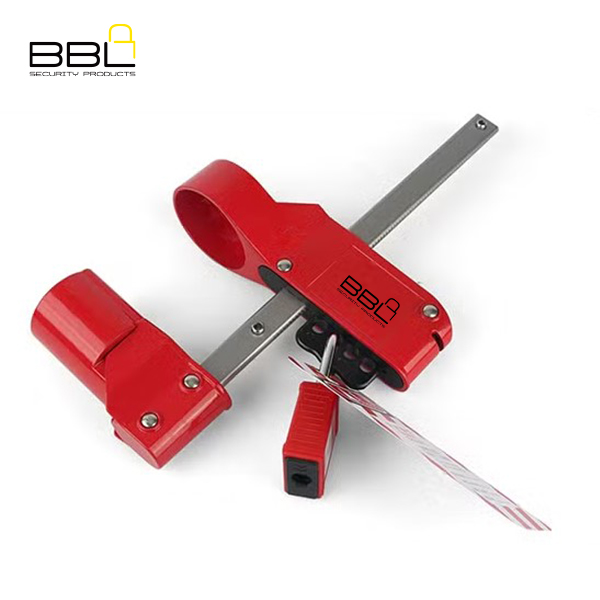

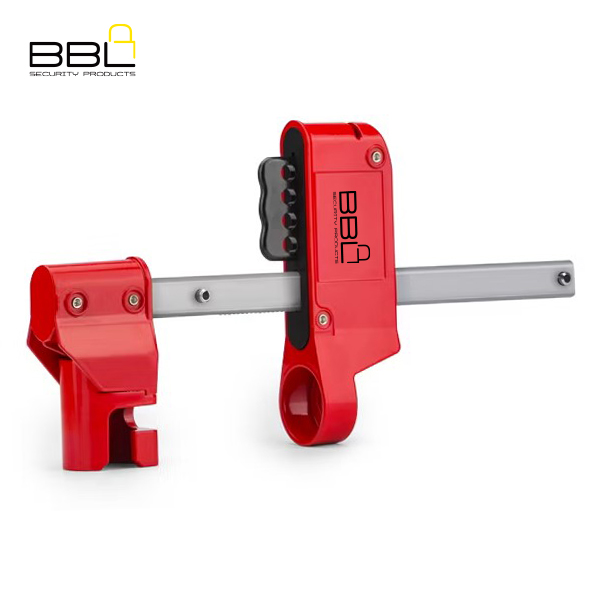

BBL Pull-Handle Butterfly Valve Lockout BBLO-F37-2
BBL Pull-Handle Butterfly Valve Lockout BBLO-F37-2
BARCODE: N/A

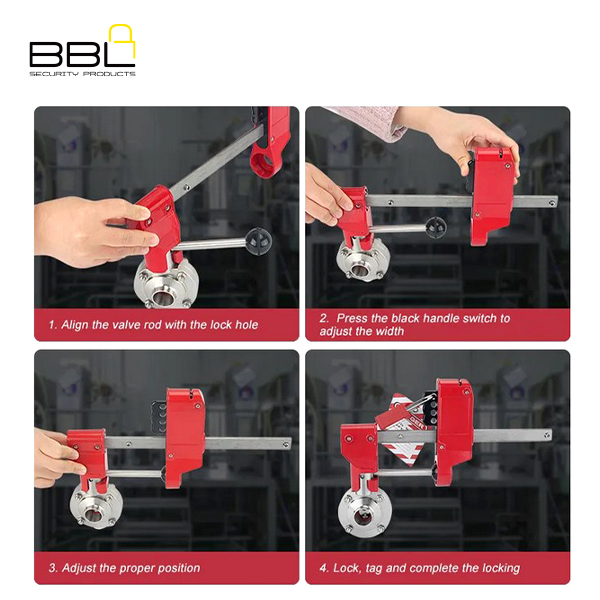

The Pull-Handle Butterfly Valve Lockout device is a physical, best practice solution for pipeline maintenance. The adjustable cup allows for a secure fit that conceals and locks out access to nuts holding a blind in place. Workers can perform maintenance with confidence that the blind they placed on a pipeline will not be removed until all workers have removed their padlocks. 4 locking holes allow for multiple workers to lockout device at one time.
- The Pipe Blind Flange Lockout Device BBLO-F37-2 for use with nut diameter from 52mm – 70mm.
- Lockable width: 190mm – 530mm.
- Durable aluminum and hardened steel construction withstands conditions indoors and out.
- Device fully conceals flange bolts preventing access to the blind until all work has been completed.
- Adjustable device provides a tight fit, adapting to multiple flanged pipe applications.
- Four lockout holes allow for multiple workers to lockout device at one time.
- Accepts padlocks shackle up to dia 7mm.
Description
BBL Pull-Handle Butterfly Valve Lockout BBLO-F37-2
BARCODE: N/A
The Pull-Handle Butterfly Valve Lockout device is a physical, best practice solution for pipeline maintenance. The adjustable cup allows for a secure fit that conceals and locks out access to nuts holding a blind in place. Workers can perform maintenance with confidence that the blind they placed on a pipeline will not be removed until all workers have removed their padlocks. 4 locking holes allow for multiple workers to lockout device at one time.

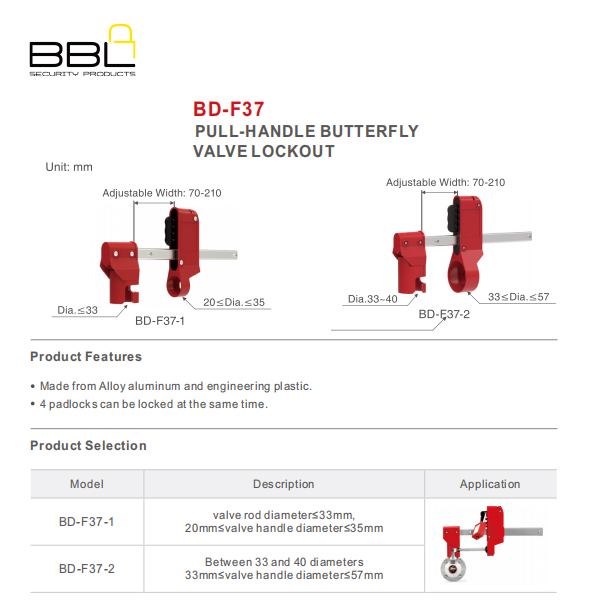

- BBLO-F37-1 – Pull-Handle Butterfly Valve Lockout device small (bolt nut ø 19 mm – 28.5mm)
- BBLO-F37-2 – Pull-Handle Butterfly Valve Lockout device medium (bolt nut ø 33mm – 48mm)
BBL Blind Flange Valve Lockouts
Information
| Brand | BBL SECURITY PRODUCTS |
|---|---|
| Product Type | Industrial Safety Lockouts |
| Body Material | Satin Stainless, Iron, Thermoplastic |
